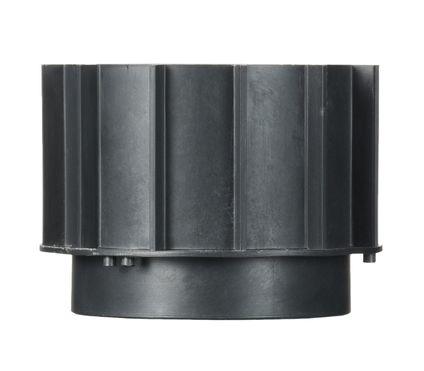

Extension of 60 mm for paving and decking riser pedestal - Essential range - Box of 5 bags...
Essentiel self levelling paving riser pedestal adjustable from 29 to 39 mm
Reference:
IH029039DSN0000
Compatible
Terraces
Paved terrace
Riser pedestal terraces
Paving riser pedestals
Self-levelling riser pedestals
Adjustable self-levelling riser pedestal for tiled, ceramic or paved terraces.
Can be used to create a terrace on even or uneven ground.
Can compensate or create, gradients of up to 5% on all types of ground.
Our products in detail
Description
4 snappable 3 mm spacers for a smooth surface.
Optimised flange shape for easier fitment against a wall or internal corner.
Millimetre-accurate manual height adjustment using the screw adjuster: no other tools are required.
Reinforced for greater compressive strength.
Self-locking grooves on the rear of the riser pedestal remain in contact with the ground for greater stability.
This riser pedestal is adjustable for heights of between 29 and 39 mm, and designed for tiled, ceramic or slab terraces intended for pedestrian use. Self-levelling riser pedestals can be used on uneven or irregular ground to compensate for – or create – gradients of up to 5%, regardless of ground characteristics. Located beneath tile corners at each intersection, it allows air to circulate freely, prevents rising damp and leaves space for cable and pipe runs. Manual height adjustment.
Made in France.
10 year warranty
Iso9001
Iso14001
label MORE.
Information sorting
Recycled material.
FDES
Keypoints
Adapts to irregularities in the project location.
Pivoting head.
Compensates for, or can be used to create, gradients of up to 5% on all types of ground.
Quick and easy to install.
Technical characteristics
Color:
Black
Material:
Recycled polypropylene
Basis diameter in mm:
198
Support surface diameter in mm:
120
Height in mm:
Adjustable from 29 to 39 mm
Spacer thickness in mm:
3
Spacer height in mm:
8
Packing:
Box of 60 parts
Installation and Application
The 29/39 mm self-levelling riser pedestal can be used with the 10 mm height extender.Given its low height, the following Jouplast® accessories cannot be used to finish terrace edges: the paved side finishing plate and paved terrace side cladding support. See installation instructions.
This riser pedestal is intended for use only on uneven ground or an existing concrete slab.At least one riser pedestal should be positioned at each corner of the paving slab.
Please refer to the paving/ceramic tile manufacturer’s recommendations to decide whether or not additional riser pedestals may be required.
The paving used must be self-supporting and compliant with French classification T7, T11 or F+.
a question?
Our landscaping experts have the answers
1. Which types of ground can self-levelling terrace riser pedestals be used on?
It is perfectly possible to install these riser pedestals on well-prepared uneven ground. They work equally well on existing concrete slabs, and can be installed immediately adjacent to existing installations with no problem.
2. Does the ground need to be prepared before installing self-levelling terrace riser pedestals?
The surface on which self-levelling adjustable terrace riser pedestals are to be installed should always be prepared in advance. Unprepared ground (e.g. unprepared soil or lawn) may change over time and can be subject to movement, depending on the weight it is required to bear and the weather conditions to which it will be subject (dry periods, heavy rainfall, etc.). For these reasons, it is important to stabilise the ground beneath the terrace to ensure its long-term stability. Can also be used with Timber decking tiles.
